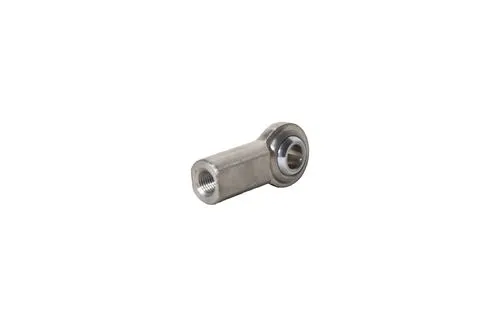

Stainless Steel Spherical Rod End – 5/8″ x 5/8″ (10212)

Product Name:  Female Spherical Rod End
Thread:  Female 5/8-10 RH x 1.50″ deep
Ball ID:  5/8″
Housing Material:  300 Series Stainless Steel
Ball Finish:  440c Stainless Steel
Bearing Race:  PTFE
Housing Width:  1.50″
Base of Rod End to Center of Ball:  2.50″
Ball Thickness:  0.750″
Ultimate Static Load Rating:  6,933 lbs
Common Other Names for this Product:  heim joint, rose joint

Application:  This size rod end is often used in hand or foot actuated push-pull linkages.
Alternative Designs: For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF(stainless) series, or DPF (bronze zerked) series.
Metric Alternative:  The metric equivalent to this series is our DXTF series.
Warning:  Regardless of a specific product’s name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
