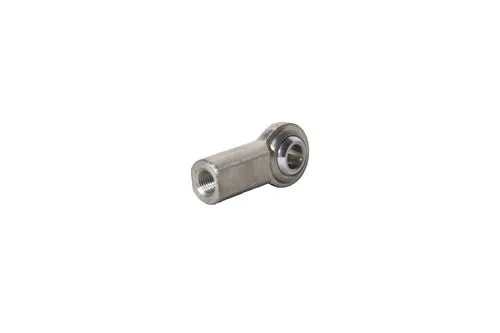

Stainless Steel Spherical Rod End – 3/16” x 3/16” (10202)

Product Name:  Female Spherical Rod End
Thread:  Female 10-32 RH (3/16″) x 0.562″ deep
Ball ID:  3/16″
Housing Material:  300 Series Stainless Steel
Finish:  Bright Polish
Ball Finish:  Stainless Steel
Bearing Race:  PTFE
Housing Width:  0.625″
Base of Rod End to Center of Ball:  1.062″
Ball Thickness:  0.312″
Ultimate Static Load Rating:  1,361 lbs
Common Other Names for this Product: heim joint, rose joint

Application:  This size rod end is often used in hand or foot actuated push-pull linkages
Alternative Designs:  For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF (stainless) series, or DPF (bronze zerked) series
Metric Alternative:  The metric equivalent to this series is our DXTF series
Warning:  Regardless of a specific product’s name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application
